PH ORP Analyzer PCI-1

pH refers to a measure of the acidity or alkalinity of a solution. It is used to measure the concentration of hydrogen ions in a solution. The pH scale ranges from 0 to 14, with 7 being neutral, below 7 being acidic, and above 7 being alkaline. Usually we use a Ph Sensor and a Ph Orp Controller to continuously monitor and control the pH value of the water. pH analyzers play an important role in wastewater treatment plants. The composition of the sewage is relatively complex, and the pH in the sewage is too high or too low to cause corrosion or blockage of the treatment equipment. Therefore, using an online Ph Controller with a pH sensor can monitor the pH value of the sewage, and control the dosing pump through a relay , Adjust acid and alkali and other chemical substances to adjust the pH value of sewage to achieve the best treatment conditions and protect the normal operation of treatment equipment. In the process of sewage treatment, different treatment processes have different requirements for the pH value of sewage. The PH ORP Controller can control the pH value of sewage according to the requirements of different treatment processes and improve the treatment effect. After the sewage treatment is completed, when it needs to be discharged into the natural environment, if the pH of the sewage is too high or too low, it will pollute the environment. Therefore, it is necessary to use a pH ORP controller to control the discharge port to ensure that the pH value of the discharged sewage is within the required range and reduce environmental pollution.

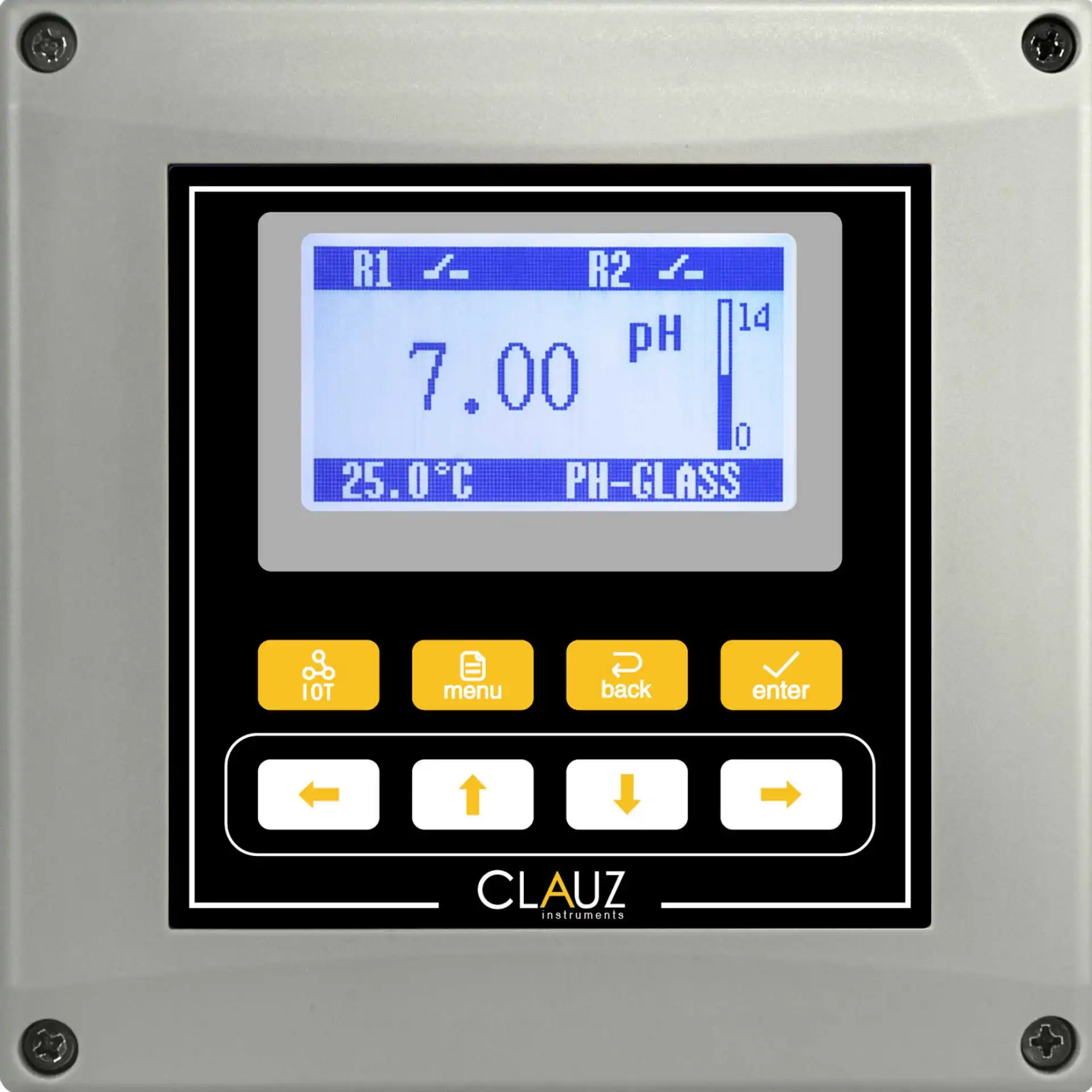

APX1-C1 Online PH ORP Controller Product Features
3.2-inch LCD display, can be connected to pH or ORP electrodes
A channel 0/4-20mA current output, can output pH or ORP value
Two configurable SPST relays, can control high and low alarm dosing
Automatic or manual temperature compensation function
pH three-point calibration, ORP two-point calibration

APX1-C1 Online PH ORP Controller Advantages
AC or DC power supply can be selected, both of which are powered by wide voltage to prevent interference caused by voltage instability
Matching panel mounting accessories, waterproof gland head
The calibration point can be modified according to the user’s standard solution value
In addition to controlling dosing, cleaning can also be controlled. With the cleaning connector of the sensor, automatic cleaning under water can be realized
